PSA Nitrogen Generator Process
Technology of PSA Nitrogen Generator

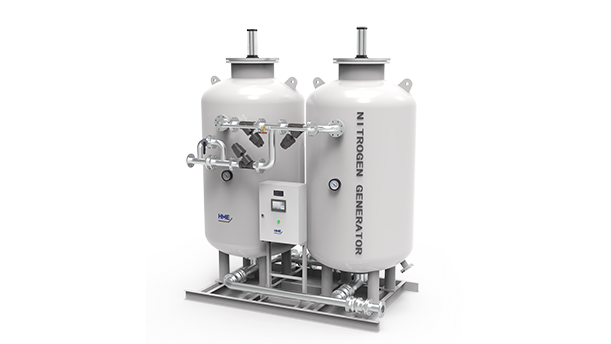

After the air is compressed to 0.85MPa by the compressor and cooled to about 40℃ by the compressor rear cooler, it enters the air purification unit to remove the dust, water and oil mist in the compressed air, and then enters the PSA transformer adsorption unit. The unit is equipped with two adsorption towers, one tower adsorption nitrogen production, one tower deattachment regeneration, through the PLC control switch valve switch, so that the two towers cycle alternately. The four working processes of adsorption, homogenization, desorption and purging are as follows.
1-air compressor; 2-filter; 3-dryer; 4-filter; 5-PSA adsorption tower; 6-filter; 7-nitrogen buffer tank
1. Adsorption
When the clean compressed air enters the A tower and flows to the outlet through the molecular sieve, the pressure of Tower A gradually rises to about 0.8MPa. The O2, CO2 and H2O in the air are adsorbed by the molecular sieve, and the unadsorbed nitrogen flows out from the adsorption tower outlet into the nitrogen buffer tank, and the adsorption duration is about 60s.
2. Equal pressure
After the molecular sieve in tower A is saturated, the adsorption is stopped, and it carries out a brief equalization process for tower B: the inlet and outlet valves of the two towers are closed, the equalization valve is opened, and the gas is pressed to the tower through the equalization valve of the adsorption tower through the equalization valve, so that the pressure of the two towers reaches balance, and the duration is about 2s. The average pressure can reduce the impact of the backward blowing gas on the molecular sieve and improve the air recovery rate.
3. Dissolution
After the equalization is completed, tower A continues to exhaust through the outlet, quickly reducing the pressure of the adsorption tower to the atmospheric pressure, so as to remove the adsorbed O2, CO2 and H2O, and realize the desorption and regeneration of the molecular sieve.
4. Blow
In order to regenerate the molecular sieve, A piece of product nitrogen is used to sweep A tower upstream. Parsing and purge duration for a total of 60s. While one tower is absorbing and producing nitrogen, the other tower is undergoing regeneration (desorption and purging) process, and tower A and Tower B alternately perform adsorption, pressure equalization and regeneration to complete the separation of oxygen and nitrogen and continuously output nitrogen.
THE BENEFITS OF AirSurr GAS NITROGEN GENERATOR SYSTEMS
Why Our Nitrogen Gas Generators?
HME Co., Ltd, has been a world leader in the design and manufacturing of O2/N2 gas generators.AirSurr's(AirSurr is brand asset of HME, dba HME Co., Ltd.) products are about 200 series include various specification of PSA and membrane nitrogen /oxygen generators,Nitrogen/Oxygen Special Purify devices,Industrial dehumidifiers and purification systems andrelated equipment etc.
Were you aware that a staggering 79% of the air we breathe consists of N2 gas? This gas not only supports our existence but also plays a crucial role in numerous professional processes spanning diverse industries, all hinging on a dependable and uninterrupted nitrogen supply. There are numerous applications, but among the most prevalent uses of nitrogen are:
- Food and Beverage Industry
- Pharmaceutical Industry
- Electronics and Semiconductor Manufacturing
- Chemical Industry
- Automotive Manufacturing
- Aerospace Industry
- Laboratory Research
- Metal Treatment and Welding
- Automotive Industry
- Agriculture
AirSurr Gas Systems Nitrogen Generators can provide a flow of up to 99.9995% n2 gas.With our decades experience, R&D and service, our equipment has held a dominant market in China. There are more than 1,00 air solutions systems are from HME, we bring great economic benefit to our customers in various industries.
Improved Production Efficiency
AirSurr Gas Nitrogen Generator Systems provide a reliable nitrogen supply, ensuring continuous production line operation and minimizing downtime. This enhanced efficiency contributes to increased production output and reduced manufacturing costs.
By utilizing AirSurr Gas Nitrogen Generator Systems, you can eliminate the reliance on gas suppliers and the need to purchase compressed gas cylinders or liquid nitrogen. This can significantly lower gas supply costs and reduce the risk of potential gas supply interruptions.
AirSurr Gas Nitrogen Generator Systems can be customized to meet your specific requirements, including flow rate, purity, and application needs. This means you can obtain a solution that perfectly suits your business.
Quality Technical Support and Service
AirSurr Gas offers excellent technical support and after-sales service to ensure your nitrogen generator system operates at its best. Our professional team is available to provide assistance and guidance at all times.We also can provide the certificate of ASME or PED.
AirSurr Gas Nitrogen Generator Systems have achieved widespread success globally, spanning various industries and applications. This demonstrates the reliability and performance of the systems.
